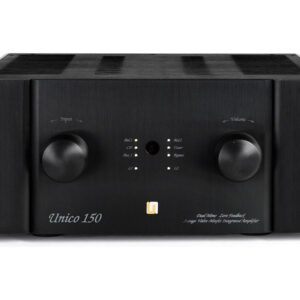

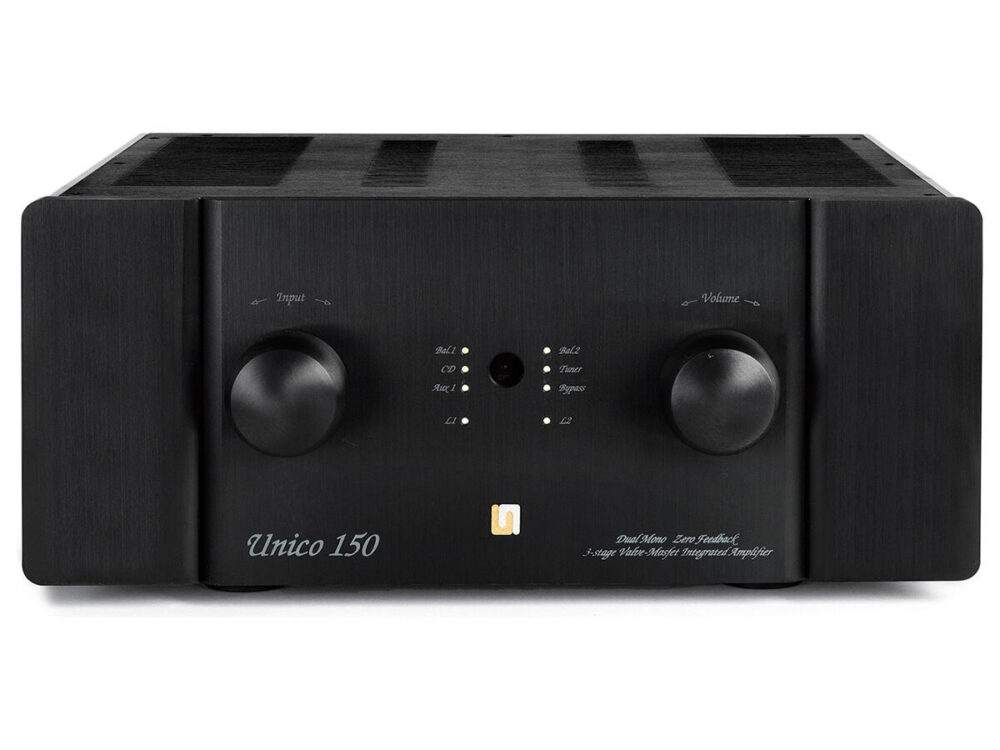

Integrated Amplifier UNICO 150
Integrated Amplifier UNICO 150
Integrated Amplifier UNICO 150
- The Unico 150 amplifier has been designed to suit both high-end audiophile and highly scientific criteria. This dual-approach to development has led to the creation of a product that is different to anything Unison Research – or any other manufacturer – have developed before: a powerful, great-sounding amplifier with only three stages (two tube stages and one power MOSFET stage).
- – Output power: 150+150 W RMS at 8Ω / 220+220 W RMS at 4Ω
- – Frequency response: -1dB @ 12Hz & 45kHz, -3 dB @ 6Hz & 80 kHz
- – Input impedance: 24kΩ // 100pF
- – Input sensitivity: 860mV RMS
- – Input stage: Pure A class, double triode totem pole ECC83
- – Driver stage: Pure A class, double triode totem pole 6H30
- – Output stage: Class AB thermostable, complementary Hexfet (4 pairs for channel)
- – Input: 6 line (3 unbalanced, 2 balanced, 1 “bypass” unbalanced)
- – Line Outputs: 1 tape, 1 sub (volume controlled)
- – Output connectors: 4 + 4 bi-wiring
- – Global Feedback factor: 0 dB
- – Local Feedback factor: 16 dB
- – THD: < 0.15% @ 1kHz, 1 W < 0.25% @ 1kHz, 10 W < 0.35% @ 1kHz, 100 W < 0.9% da 20 a 20000 Hz, 150 W
- – Output resistance: <0.4Ω, resistive on all audio frequencies
- – Power Consumption: 550 W (at max power on 8 ohm)
